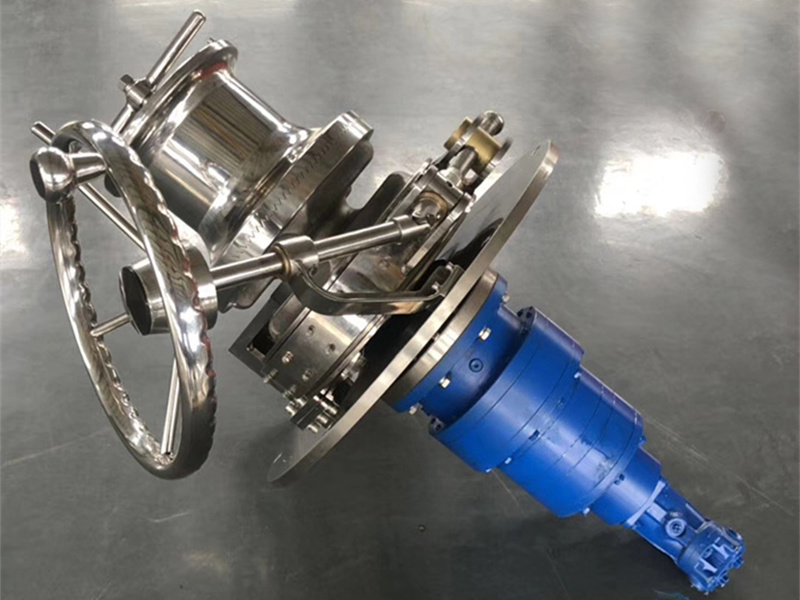

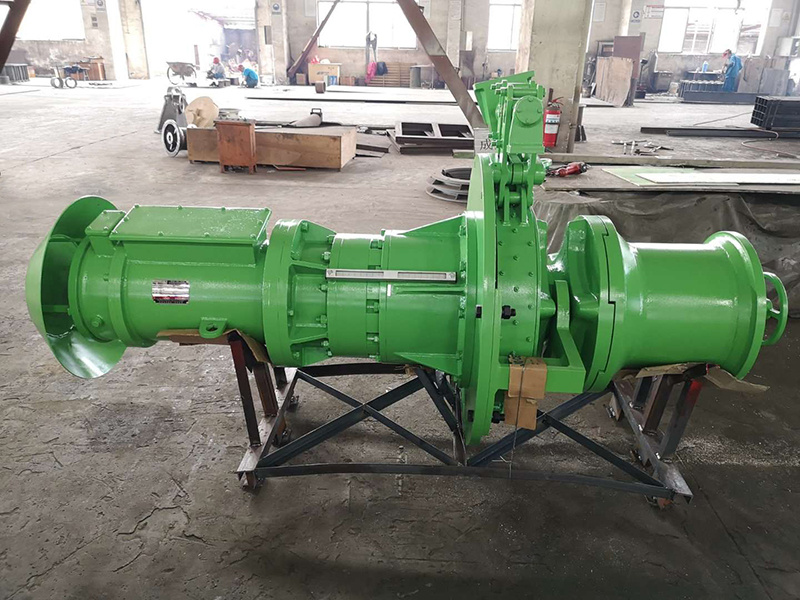

There are a variety of ways to operate an anchor capstan. A diesel engine, hydraulic pump, or electric motor can all power this device. They can be mounted either vertically or horizontally.
The diameter of the anchor chain will determine how much pulling force the device can provide. Ideally, the diameter of the wheel and anchor chain should match in order to avoid the chain from jumping off the wheel. In addition to their use in securing anchors, capstans are often used to support cranes and to lift large structures. Anchor capstan is a small machine to make different anchor operations.
Mushroom Anchor
A mushroom anchor is a large weight permanently underwater. The name comes from the mushroom-shaped cap that makes the claw easier to turn around when the boat is in motion. The mushroom anchor is widely used for moorings. They are capable of holding up to several thousand pounds. Depending on the boat size, they may weigh as much as a few tons. In order to make them work well, a mushroom anchor must be weighed at least two pounds per foot of the boat’s length.
The holding power of a mushroom anchor is the amount of pull it can handle. While this is sufficient for moorings in shallow waters, it is easily distracted by the wind. A 20-foot pontoon boat needs 90 pounds of holding power, while a twenty-five-foot pontoon boat needs 125 pounds. This is because a mushroom anchor only requires twice as much holding power as its own weight.
Split Windlass
If you are thinking of buying a split windlass, you should know a few things about it before you purchase it. The pulling power of a windlass is related to two factors: anchor weight and total ground tackle weight. Anchor weight equals the anchor plus the rode, and the total ground tackle weight is the anchor weight multiplied by three. The more weight the windlass is pulling, the stronger it will be.
A windlass is a device for lifting an anchor off the bottom of the sea. The length of a chain is usually divided between two bower anchors, and the inboard ends of the chain cables should be secured to a ship’s structure. Most ships have a single windlass for handling both bower anchors, but a split windlass is a more recent invention. A split windlass is used for a single anchor. We also have split drum winch for your choice.
Vertical Windlass
In order to understand how vertical windlasses work, it is important to understand how they work. Horizontal windlasses typically have a manual backup system, which is easy to operate. On the other hand, vertical windlasses require that you partially dismantle the system in order to install a hand crank. Here are a few things to keep in mind before purchasing a vertical windlass:
Vertical windlasses work by using a notched chain wildcat (also known as a gypsy). The windlass motor is located below the gypsy, which is attached to the boat’s centerline. The gypsy pulls the chain around itself before dropping into a hole or pipe. Some windlasses are designed to handle only one anchor rod, so cruisers typically carry a second anchor with line and chain rod.
Power Windlass
Electric capstans and windlasses are common on boats. They can be plugged into the boat’s electrical system for push-button management. However, they can be draining on batteries. Make sure your boat’s electrical system is sufficiently designed to handle the additional load. There are many different types of capstans, so it is important to consider how yours will be used. Listed below are some things to consider when choosing a new one. There are electric winches and hydraulic powered winch for your reference.
The power rating of an anchor windlass refers to the maximum load it can pull. For example, a windlass that can pull 1500 pounds should be under 500 pounds for ground tackle weight. You also need to consider the angle at which the rode approaches the horizontal windlass. Generally, a high-powered windlass can handle more than a thousand pounds of chain. But you must choose one that is durable and easy to maintain. Choosing a well-known winch brand will help you more.
